품명 : 진탕배양기
◎ 미생물이나 동식물 세포를 저종한 액체배지를 흔들어 배양하는 기기입니다.
◎ 동식물 세포배양,미생물,식품의 저장성 실험, 각종실험등에 사용된다.
|
Model
|
SI-30
|
SI-87
|
SI-87R
|
SI-121
|
SI-121R
|
SI-220
|
SI-220R
|
|
Internal Dimension
(W x D x H) (mm)
|
320 x 370 x 220
|
430 x 450 x 350
|
550 x 500 x 450
|
790 x 650 x 450
|
|
External Dimension
(W x D x H) (mm)
|
325 x 480 x 390
|
520 x 700 x 520
|
780 x 680 x 910
|
1020 x 820 x 910
|
|
Temp
|
Range
|
SI type
|
주변온도+5°C to 60°C
|
|
SIR type
|
15°C ~ 60°C
|
|
Internal Dimension
(W x D x H) (mm)
|
320 x 370 x 220
|
430 x 450 x 350
|
550 x 500 x 450
|
790 x 650 x 450
|
|
External Dimension
(W x D x H) (mm)
|
325 x 480 x 390
|
520 x 700 x 520
|
780 x 680 x 910
|
1020 x 820 x 910
|
|
Temp Controller
|
Digital PID controller
|
|
Speed Range
|
10~350 RPM
|
|
Display
|
LED Display
|
|
Drive System
|
Belt type
|
|
Motor
|
AC Motor
|
|
Circulation Fan
|
3.5" convection Fan x 2 EA
|
|
Lid
|
Acrylic Blue
|
|
Safety Device
|
Over temp. Protector, Door Detector
|
|

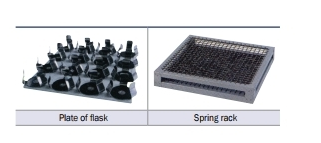

Standard Plate
|
Universal spring rack
|
|
OPTION
|
FLASK 100 mL
|
9 EA
|
21 EA
|
-
|
42 EA
|
-
|
80 EA
|
-
|
|
FLASK 250 mL
|
4 EA
|
12 EA
|
-
|
20 EA
|
-
|
40 EA
|
-
|
|
FLASK 500 mL
|
4 EA
|
9 EA
|
-
|
12 EA
|
-
|
30 EA
|
-
|
|
FLASK 1000mL
|
1 EA
|
5 EA
|
-
|
9 EA
|
-
|
20 EA
|
-
|
|
FLASK 2000 mL
|
-
|
4 EA
|
-
|
5 EA
|
-
|
12 EA
|
-
|
|
Spring Rack
|
240 x 240 mm
|
360 x 345 mm
|
-
|
460 x 410 mm
|
-
|
690 x 570 mm
|
-
|
|
Plate
|
270 x 270 mm
|
390 x 375 mm
|
-
|
490 x 440 mm
|
-
|
720 x 600 mm
|
-
|
|
