Feature 특징
■ 2” Chip Tray
- Overall Size : 50.8±0.102 mm
- Overall Height : 3.96±0.051 mm
- Flatness : 0.102 mm
■ Entegris
Specification 사양
Technical Data
| Material | Code | Description | Description Color | Static Protective |
Surface Resistivity (ohms/sq.) |
Static Decay Time (sec.) |
Dimensional Stability |
Chemical Resistance |
Temp. Limit |
For Applications Requiring |
|---|---|---|---|---|---|---|---|---|---|---|
| ChipSentry, SRAT-PRO 500 |
-66C02 | Polycarbonate with carbon powder |
Black | Yes | 10(3) - 10(6) | <0.01 | Excellent | Poor | 70℃ | Static protection and dimensional stability |
| ABC | 1412 | Acrylonitrile butadiene styrene with a color additive |
Ivory | No | - | - | Good | Poor | 70℃ | Dimensional stability, not static protection |
2” Chip Tray Set (재질 : ABS - Ivory Tray)
| Cat. No. | Model | 칸수 | Description |
|---|---|---|---|
| T12-34-604 | H20-080-Set | 100 | Tray + Cover + Clip |
| T12-34-608 | H20-100-Set | ||
| T12-34-612 | H20-287-Set | 25 | |
| T12-34-616 | H20-411-Set | 16 | |
| T12-34-620 | H20-551-Set | 9 | |
| T12-34-622 | H20-426-Set |

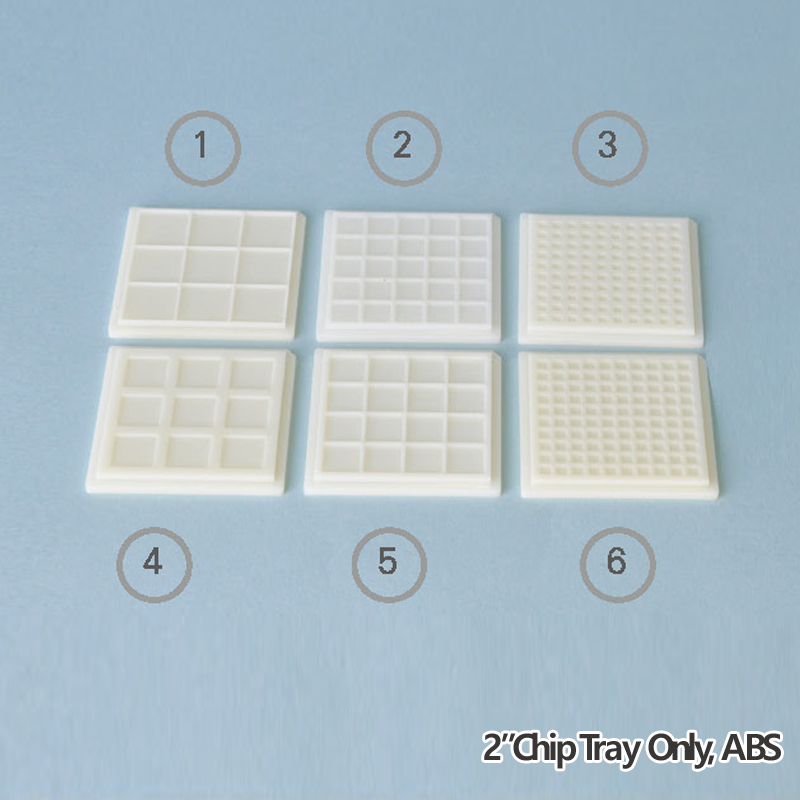

2” Chip Tray (재질 : ABS) - Ivory Color
| Cat. No. | Model | 칸수 | Pocket Size |
|---|---|---|---|
| T12-34-056 | H20-080 | 100 | 2.01sq×d0.86mm③ |
| T12-34-063 | H20-100 | 2.54sq×d0.86mm⑥ | |
| T12-34-070 | H20-287 | 25 | 7.29sq×d0.81mm② |
| T12-34-077 | H20-411 | 16 | 9.58sq×d1.02mm⑤ |
| T12-34-084 | H20-551 | 9 | 14.00sq×d0.99mm① |
| T12-34-088 | H20-426 | 10.77sq×d0.77mm④ |
2” Chip Tray Set (재질 : ChipSentry® - Black Tray)
| Cat. No. | Model | 칸수 | Description |
|---|---|---|---|
| T12-34-650 | H20-414B-Set | 100 | Tray + Cover + Clip |
| T12-34-653 | H20-414B6-Set | ||
| T12-34-654 | H20-426B-Set | 9 | |
| T12-34-658 | H20-854B-Set | 4 | |
| T12-34-662 | H20-063651B-Set | 30 (15×2) |
2” Chip Tray (재질 : ChipSentry®) - Black Color
| Cat. No. | Model | 칸수 | Pocket Size |
|---|---|---|---|
| T12-34-133 | H20-414 | 100 | 3.56sq×d0.44mm① |
| T12-34-135 | H20-414-6 | 3.56sq×d1.52mm | |
| T12-34-140 | H20-426 | 9 | 10.77sq×d0.77mm |
| T12-34-147 | H20-854 | 4 | 21.69sq×d1.02mm ② |
| T12-34-154 | H20-063651 | 30 (15×2) | 1.60×16.51×d0.30mm |

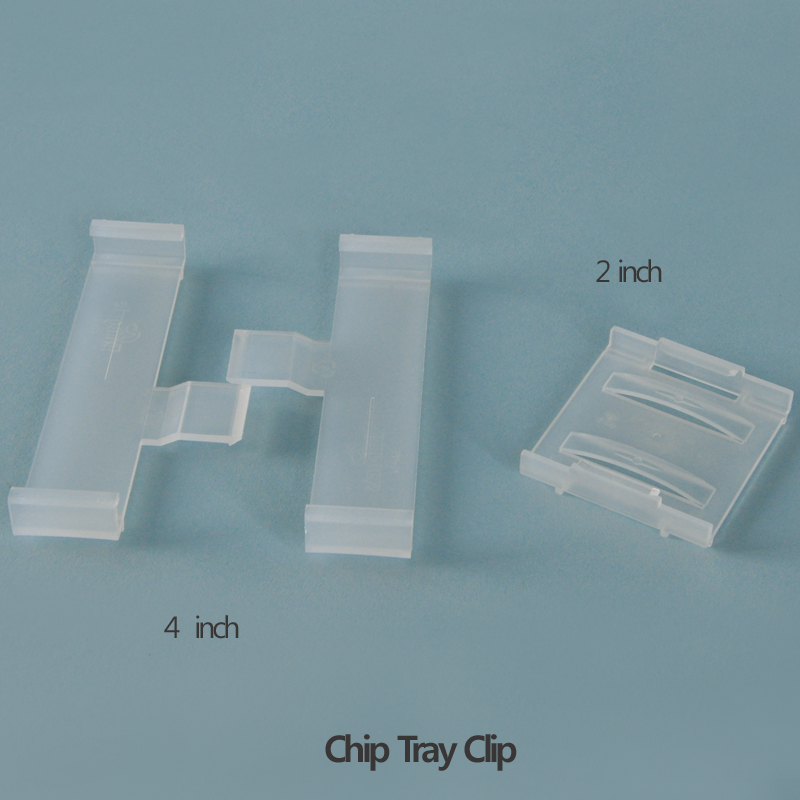

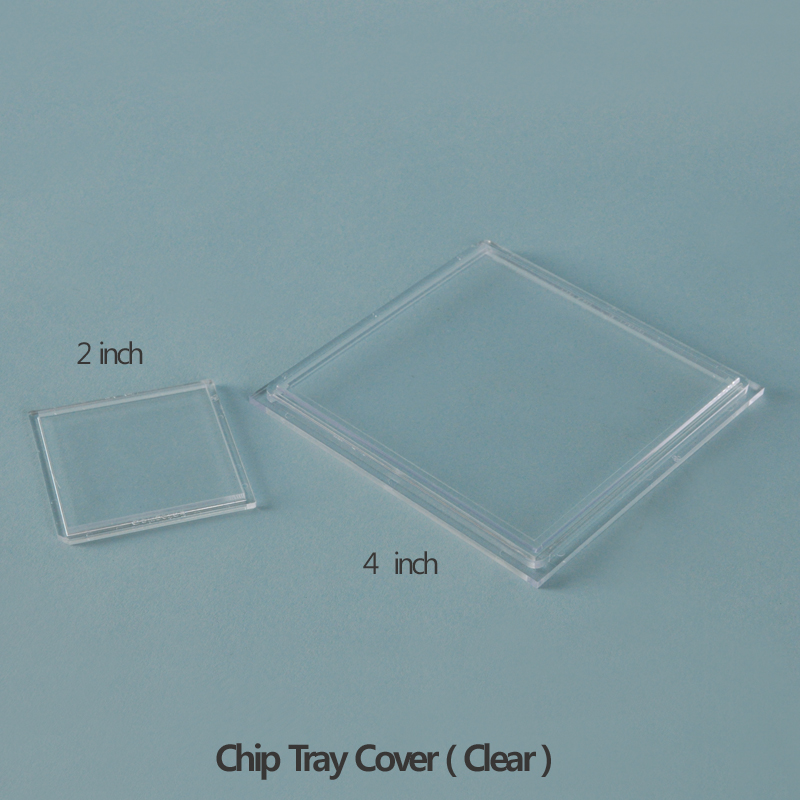

2” Chip Tray Cover & Clip
| Cat. No. | Model | Description |
|---|---|---|
| T12-34-189 | H20-04B-0615 | Clip, Natural PP |
| T12-34-196 | H20-02-1216 | Cover, Clear styrene |
| T12-34-203 | H20-02-1415 | Cover, ABS (Ivory) |
| T12-34-210 | H20-02-66C02 | Cover, ChipSentry® (Black) |
※ 별도 제품 사양 및 기타문의는 전화, 이메일 또는 온라인 상담 게시판을 이용해주시기 바랍니다.
문의전화 : 031) 256-7321~2 이메일 : you1tech@naver.com
