Model | Model | Type | 외부 냉각 장비 |
S04-05-158 | 3940000 | KS 3000 i control | X |
S04-05-160 | 3940100 | KS 3000 ic control | O |
Model | Model | Type | 외부 냉각 장비 |
S04-05-163 | 3510000 | KS 4000 i control | X |
S04-05-170 | 3510100 | KS 4000 ic control | O |

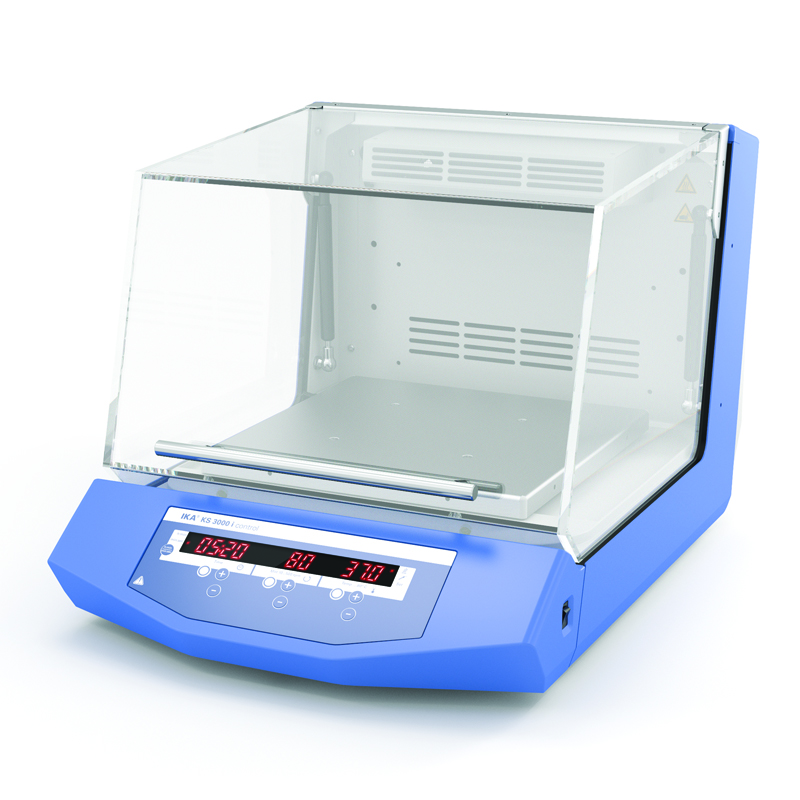

Type | KS 3000 i control | KS 3000 ic control | KS 4000 i control | KS 4000 ic control |
Temp. Range | 5℃ ~ 80℃ | -10℃ ~ 80℃ (외부냉각장비) | 5℃ ~ 80℃ | -10℃ ~ 80℃ (외부냉각장비) |
Shaking Diameter | 20 mm | |||
Max. Shaking Weight | 7.5 kg | 20 kg | ||
Motor 입출력 | 45/10 W | 82/24 W | ||
Speed Range | 10 ~ 500 rpm | |||
Timer | 1 sec ~ 999 hr | |||
Heat Output | 1000 W | |||
Temp. Stability | ±0.1 K | |||
Size | w465×d695×h430 mm | w580×d750×h525 mm | ||
Weight | 35 kg | 37 kg | 50 kg | 55 kg |
Interface | RS232, USB | RS232 | ||
전기규격 | 230 V, 50/60 Hz | |||

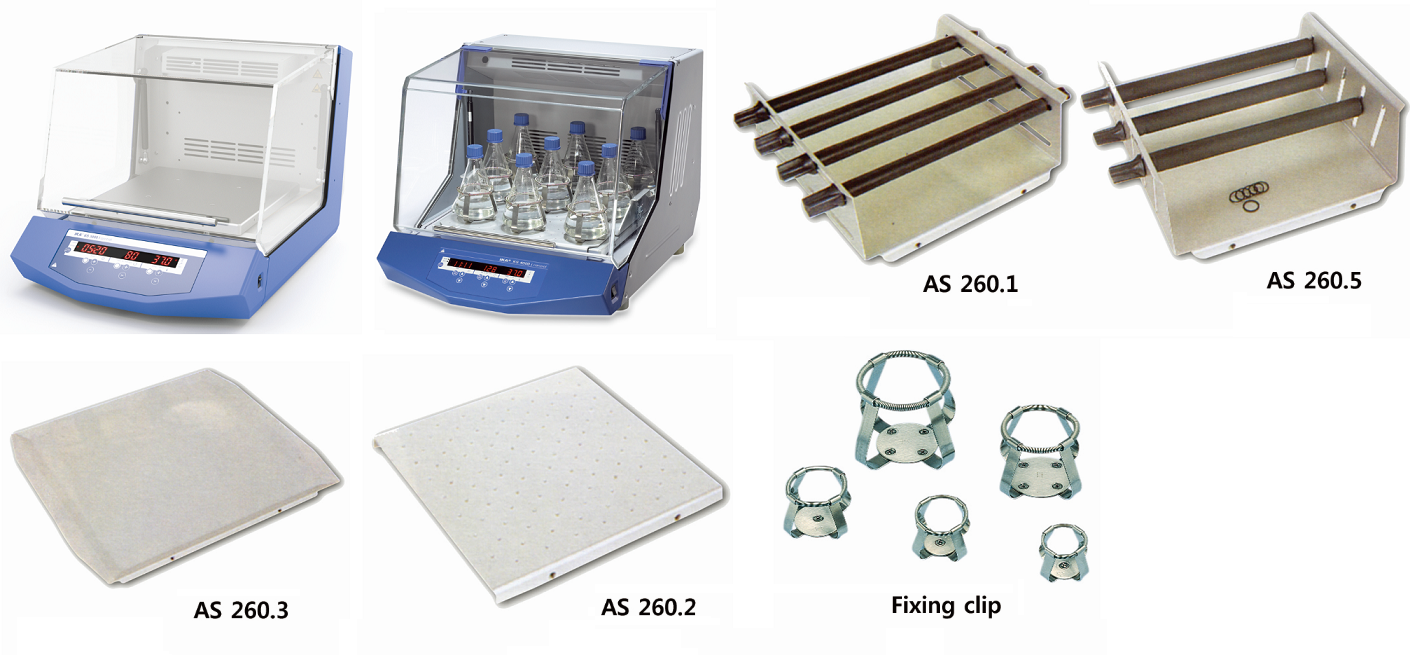

Model | Model | Type | Description |
S04-05-521 | 8017400 | AS260.1 | Universal Attachment |
S04-05-528 | 3115500 | AS260.2 | Fixing Clip Attachment |
S04-05-535 | 3120600 | AS260.3 | Dish Attachment |
S04-05-542 | 3120900 | AS260.5 | Separating Funnel Attachment |
Model | Model | Type | Description |
S04-05-749 | 8022200 | AS4000.1 | Universal Attachment |
S04-05-756 | 3710100 | AS4000.2 | Fixing Clip Attachment |
S04-05-763 | 3710600 | AS4000.3 | Dish Attachment |
Model | Model | Type | AS4000.2에 장착가능 수량 | Description |
S04-05-912 | 1234300 | AS2.1 | 55개 | Fixing Clip, 25 ml용 |
S04-05-918 | 1234400 | AS2.2 | 38개 | Fixing Clip, 50 ml용 |
S04-05-924 | 1234500 | AS2.3 | 25개 | Fixing Clip, 100 ml용 |
S04-05-930 | 1234600 | AS2.4 | 16개 | Fixing Clip, 250 ml용 |
S04-05-936 | 1234700 | AS2.5 | 11개 | Fixing Clip, 500 ml용 |
H03-05-650 | 4720000 | labworldsoft | - | Software |
